Product Description

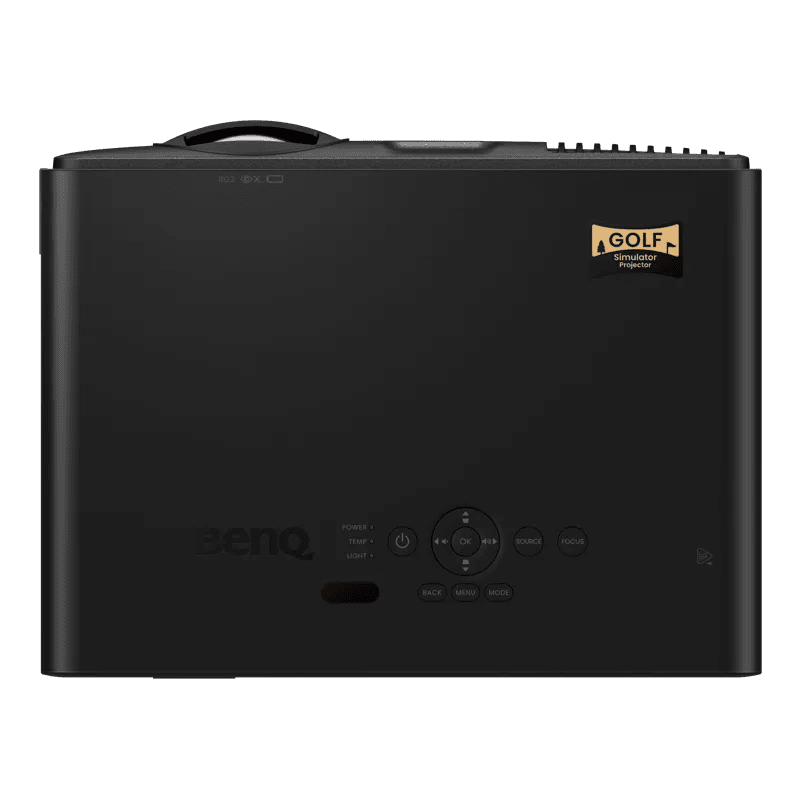

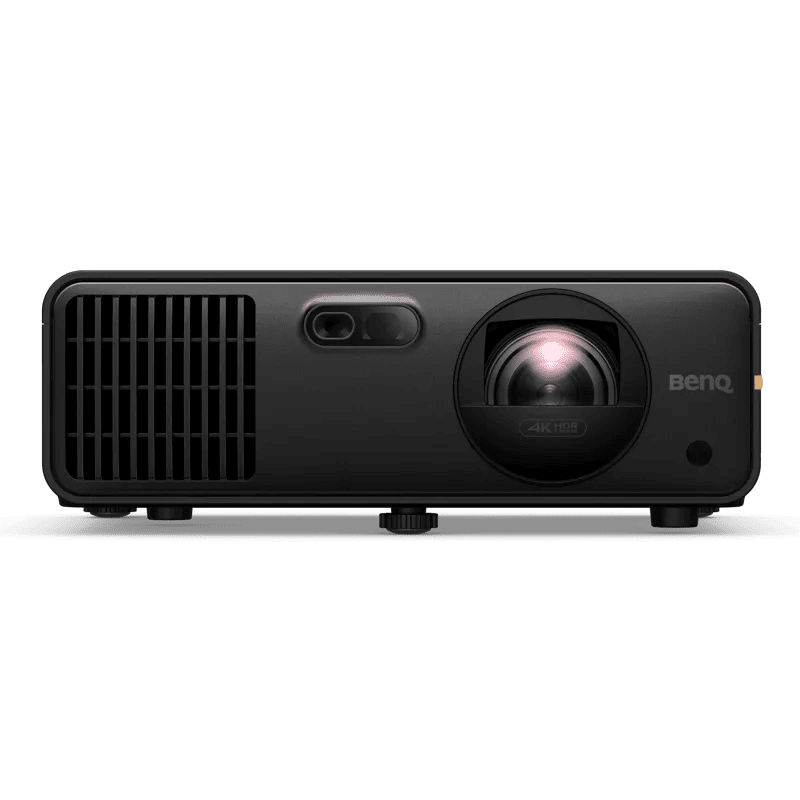

BenQ AK700ST 4000-Lumen 4K Short Throw Laser Golf Simulator Projector

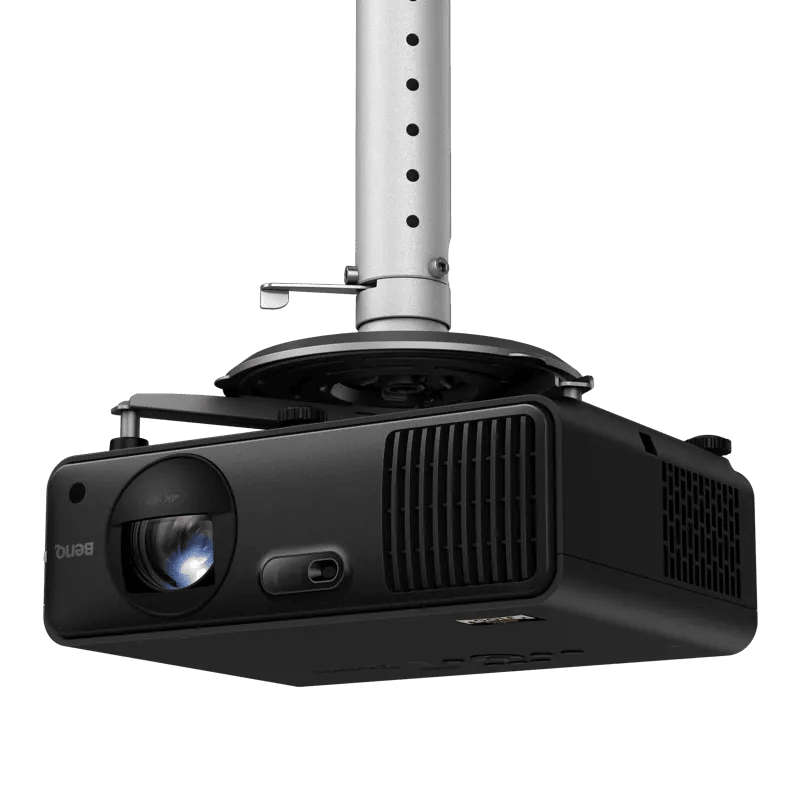

The BenQ AK700ST is purpose-built for golf simulation, delivering true 4K UHD (3840 × 2160) resolution with 4000 ANSI lumens of laser brightness and a 3,000,000:1 contrast ratio. Its short throw ratio of 0.69–0.83 positions the projector safely behind the hitter — eliminating shadows and collision risks while projecting up to a 200-inch image from a compact distance.

Auto Screen Fit, one-button setup, exclusive Golf Mode, and a 20,000-hour IP5X sealed laser engine make the AK700ST a low-maintenance, high-performance solution for home simulator bays and commercial golf facilities.

Key Features

  • Auto Screen Fit — Automatically detects and adjusts to your impact screen’s aspect ratio — 16:9, 16:10, 4:3, or 1:1 — for optimal resolution at the touch of a button.

    BenQ AK700ST auto screen fit.

  • Seamless Golf & Entertainment Switching — Cinematic-grade 4K resolution transitions effortlessly between golf simulation and movie nights for a complete home entertainment experience.

    BenQ AK700ST seamless swinging.

  • Up to 200" Display with 1.2x Optical Zoom — Motorized lens with optical zoom lets you adjust screen size without reinstalling the projector — no loss in image quality.

    BenQ AK700ST 200-inch display.

  • True 4K Detail — 8.3 million distinct pixels render every blade of grass, bunker edge, and terrain texture with unmatched clarity and depth.

    BenQ AK700ST 4K detail visibility.

  • 4000 Lumens — Any Lighting Condition — High brightness and 3,000,000:1 contrast deliver vibrant, crystal-clear projection whether the lights are on or off.

    BenQ AK700ST perfect for any lighting.

  • Exclusive Golf Mode — Purpose-built color profile optimized for grass, sand, and course environments. Enhances realism across all major simulator software.

    BenQ AK700ST true-to-life colors.

  • 20,000-Hour Laser Light Source — Long-life laser engine eliminates lamp replacements and minimizes maintenance costs over years of heavy use.

    BenQ AK700ST durable laser technology.

  • Eco-Friendly Construction — 15% lower energy consumption than traditional lamp projectors. Built from post-consumer recycled materials. TUV and UL certified.

    BenQ AK700ST eco-friendly green technology.

What's Included

  • BenQ AK700ST Projector

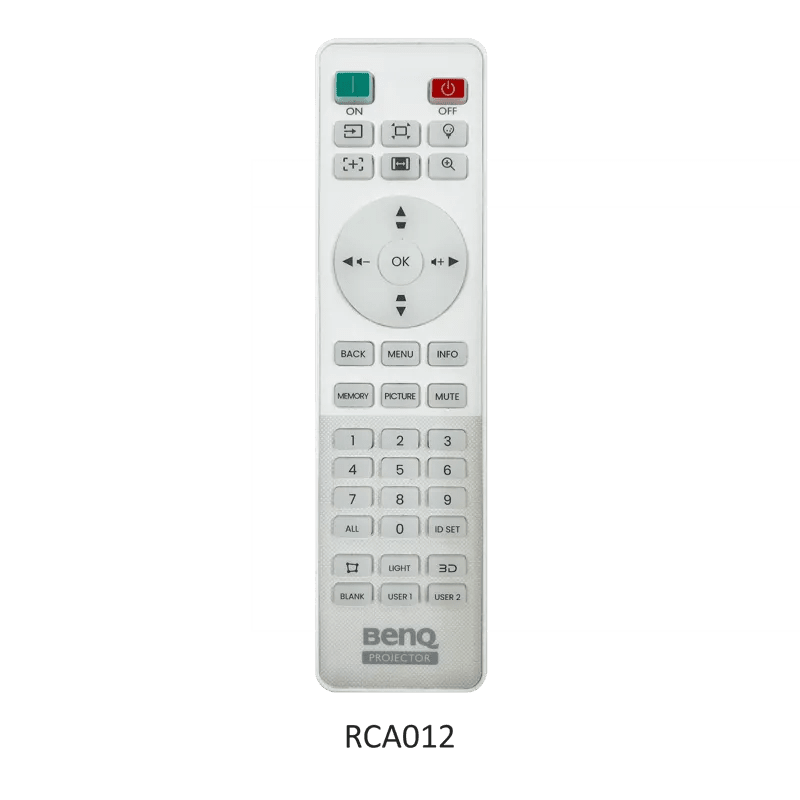

  • Remote Control with Batteries
  • Power Cord (1.8M)
  • Quick Start Guide

Specifications

Display

  • Brightness: 4000 ANSI Lumens
  • Resolution: 4K UHD (3840 × 2160)
  • Aspect Ratio: 16:9 Native / 16:10, 4:3 Selectable
  • Contrast Ratio (FOFO): 3,000,000:1
  • Display Color: 30-bit (1.07 billion colors)
  • Light Source: Laser — 20,000 hrs

Optical

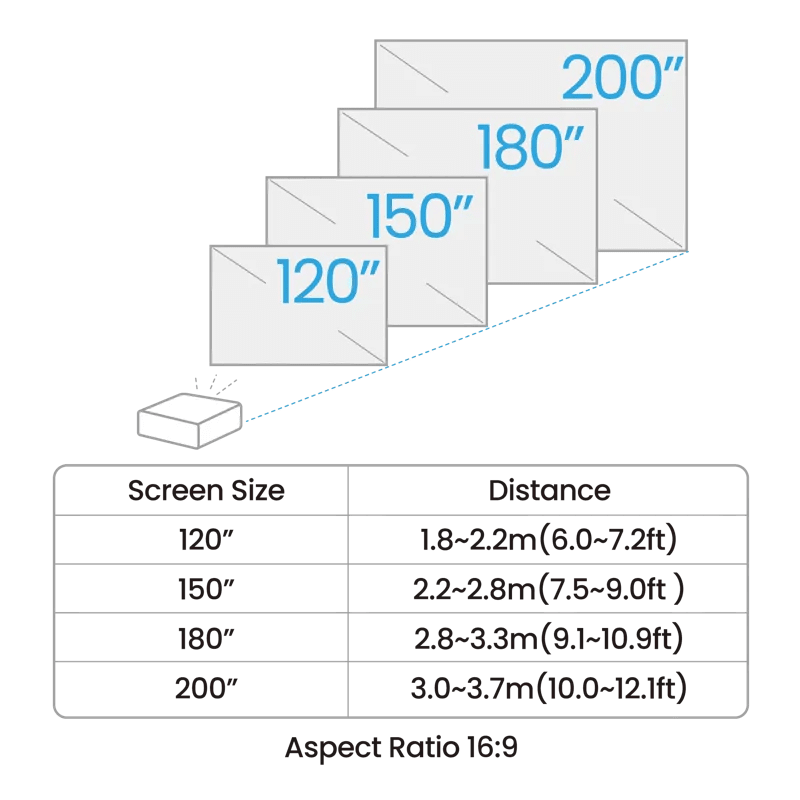

  • Throw Ratio: 0.69–0.83
  • Zoom: 1.2x
  • Lens: F/2.53 / f 10.2mm (Wide)
  • Projection Offset: 102.5%
  • Keystone: 3D — Vertical ±30° / Horizontal ±30° / Rotation ±30°


  • Rec. 709 Coverage: 95%
  • Picture Modes: 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

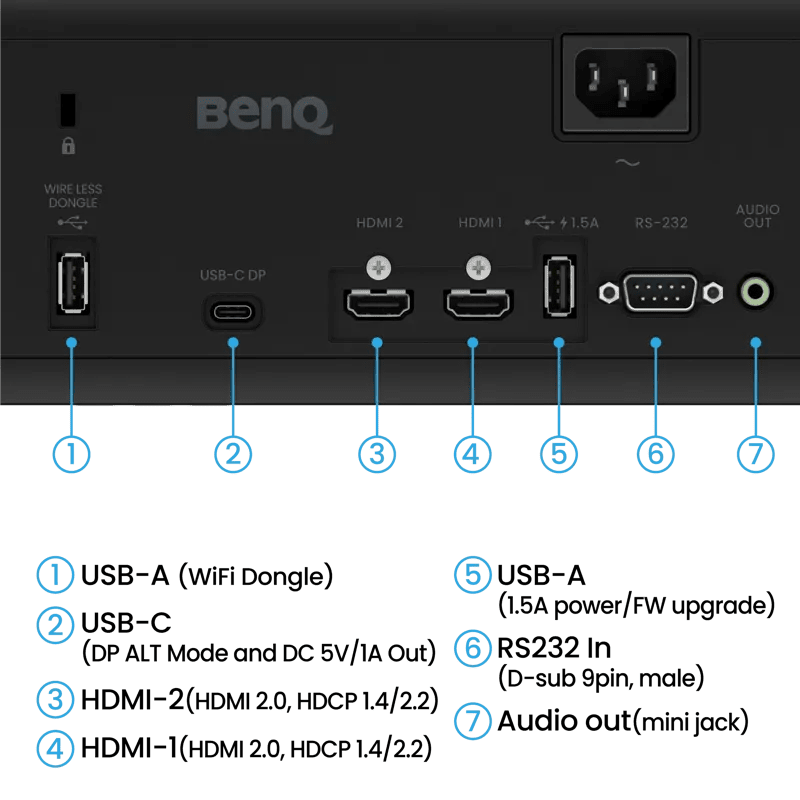

I/O

  • HDMI: 2× (HDMI 2.0b / HDCP 2.2)
  • USB Type-A: 2× (USB 2.0 / 1.5A / Wireless Dongle)
  • USB Type-C: 1× (DisplayPort with PD out 5V/1A)
  • RS232 In (DB-9): 1×

Audio

  • Speaker: 10W
  • HDMI Audio Return: eARC, 7.1 channel

Dimensions & Weight

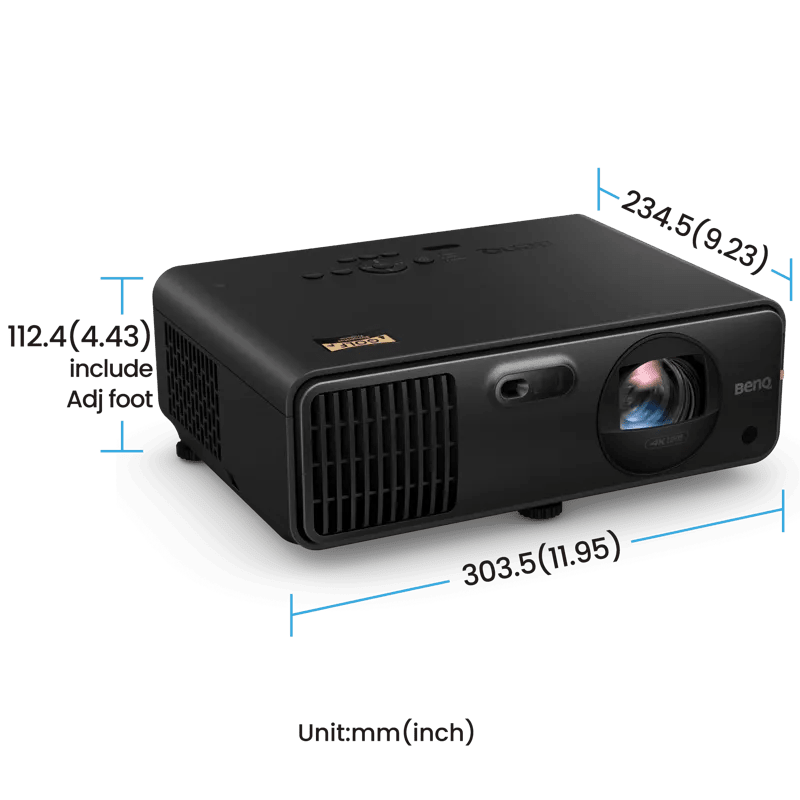

  • Dimensions: 11.94"W × 4.42"H × 9.23"D (303.5 × 112.4 × 234.5 mm)
  • Weight: 7.48 lbs (3.4 kg)

Power & Environment

  • Power Supply: AC 100–240V, 50/60Hz
  • Power Consumption: 192W (Typical) / <0.5W (Standby)
  • Operating Temperature: 0–40°C
  • Acoustic Noise: 32dB (Normal) / 29dB (ECO)

Projection System

  • DLP
